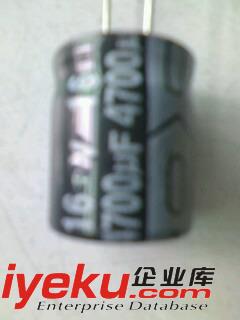

SH series general purpose1050C 高溫度標準品
1. 寬溫度產品，1050C，2000小時壽命，體積小，容量大
Wide temperature range,1050C,Load life:1000hours,small size,
large capacity
2. 適用于VCD、DVD、背投彩電、空調等線路中
Used in VCD、DVD、color-TV、air conditioning circuits etc.
Specifications
|
No |
Item |
Performance |
||||||||||||||||||||||||||||
|
1 |
使用溫度范圍 OperatingTemperatureRange |
-40 to +1050C |
-25 to +1050C |
|||||||||||||||||||||||||||
|
2 |
定格電壓范圍 RatedWorkingVoltageRange |
6.3－63V.DC |
100－450V.DC |
|||||||||||||||||||||||||||
|
3 |
靜電容量范圍 Capacitance Tolerance |
0.1－15000μF |
0.47－1000μF |
|||||||||||||||||||||||||||
|
4 |
靜電容量容許差 Capacitance Tolerance |
±20%(at+250C,120HZ) |
||||||||||||||||||||||||||||
|
5 |
泄漏電流 Leakage Current |
I≤0.01V or 3（μA）max |
I≤0.03CV or 20（μA）max |
|||||||||||||||||||||||||||
|
L: Leakage Current （μA） Whichever is greater after 3 minutes. C: Rated Capacitance （μF） V: Working Voltage （V） |
||||||||||||||||||||||||||||||
|
6 |
損失角 Dissipation Factor(tanδ) （120Hz\+25℃） |
For capacitance value ＞1000μF, add 0.02 per another 1000μF |
||||||||||||||||||||||||||||
|
7 |
溫度特性（at 120 Hz） Characteristics at low temperature （stability at 120HZ） |
For capacitance value >1000μF,Add 0.5 per another 1000μF for-25℃/+25℃. Add 1.0r another 1000μF for-40℃/+20℃ |
||||||||||||||||||||||||||||
|
8 |
高溫負荷特性 High Temperature Loading |
After 2000hrs. application of DC rated working voltage at +105℃. The capacitor shall meet the following limits: Post test requirements at +25℃
|
||||||||||||||||||||||||||||
|
9 |
高溫?zé)o負荷特性 Shelf Life |
After storage for 1000hrs. at+105℃ with no voltage applied. Post test requirements at+25℃ Same limits for high temperature lading.
|
||||||||||||||||||||||||||||
